Aisle Gates
Our light weight heavy duty aisle gates are available in steel (12 lbs) or aluminum (6 lbs).
| Part Number | Collapsed Height | Max Width | Weight |
|---|---|---|---|
| BG-ST | 40in | 7ft | 12lbs |
| BG-AL | 40in | 7ft | 6lbs |
| Weight | 12 lbs. |
| Dimensions | 40″ High In Use x Up To 7′ Long |
| Channel | 3/8″ x 3/4″, 14 Gauge, Powder Coated |
| Frame | 1-1/2″ x 1-1/2″, 12 Gauge Angle Iron, Powder Coated |
| Feet | 1 Pair, 1′ Wide x 1″, 14 Gauge, Powder Coated |
| Rivets | 3/16″ x 1/2″ Steel, Zinc Plated |
| Straps | 12″ Long x 1-1/2″ Wide , 14 Gauge, Powder Coated |
| Handle/Locking Pin | 5/8″ Dia, Gates can be attached to each other with “L” Shaped Pin that engages a Round Tube welded to the frame |
| Finish | Galvanized, Powder Coated OSHA Yellow |

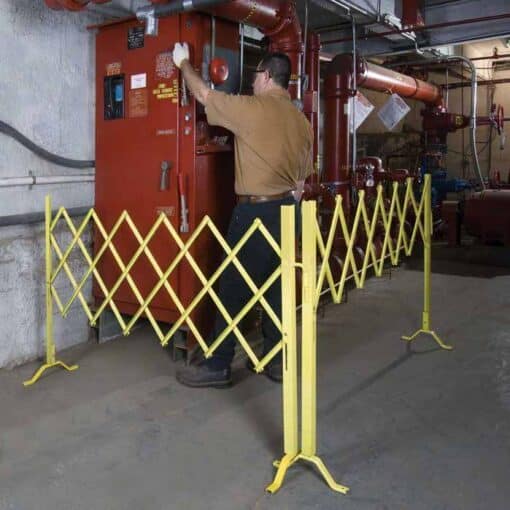

Aisle gates are ideal for maintenance requiring temporary access control to hazardous or problem areas. These portable security gates are light weight and easy to move and erect. They are powder-coated safety yellow and are perfect for Schools, warehouses, and retail settings.

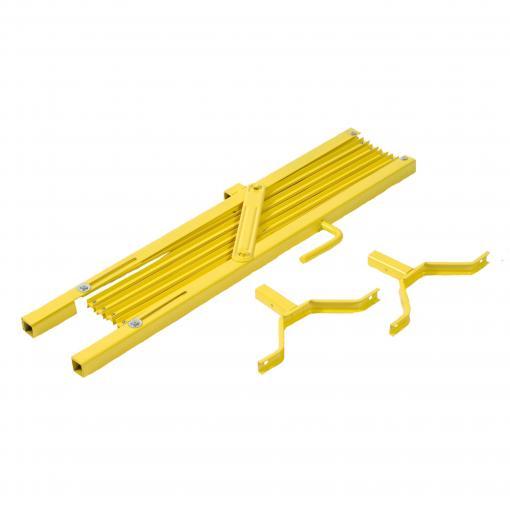

When not in use aisle gates are collapsible with a small footprint for easy storage.
