Folding Door Gates
Heavy Duty Folding Door Gates from Blockader ideal for securing entryways up to four (4) feet wide.
Please Note: Door Gates lose height expanding.
Scroll down below for sizing chart. You can add your gate size information in the quote notes section during checkout.
*CALL FOR VOLUME DISCOUNTS AND SHIP RATES
Additional information
| Door Gate Size | BG-D31 (31"H x 48"W), BG-D33 (31"H x 48"W), BG-D37 (37"H x 48"W), BG-D40 (40"H x 48"W), BG-D43 (43"H x 48"W), BG-D46 (46"H x 48"W), BG-D49 (49"H x 48"W), BG-D51 (51"H x 48"W), BG-D59 (59"H x 48"W), BG-D61 (61"H x 48"W), BG-D63 (63"H x 48"W), BG-D66 (66"H x 48"W), BG-D71 (71"H x 48"W), BG-D73 (73"H x 48"W), BG-D76 (76"H x 48"W), BG-D79 (79"H x 48"W), BG-D81 (81"H x 48"W), BG-D83 (83"H x 48"W) |
|---|
Accordion Door Gate Sizing Table
- Secure outside access during the day and provide added security at night
- Mount these gates on the left or right side, in the casing or on the facing
- In Stock, Ready To Ship

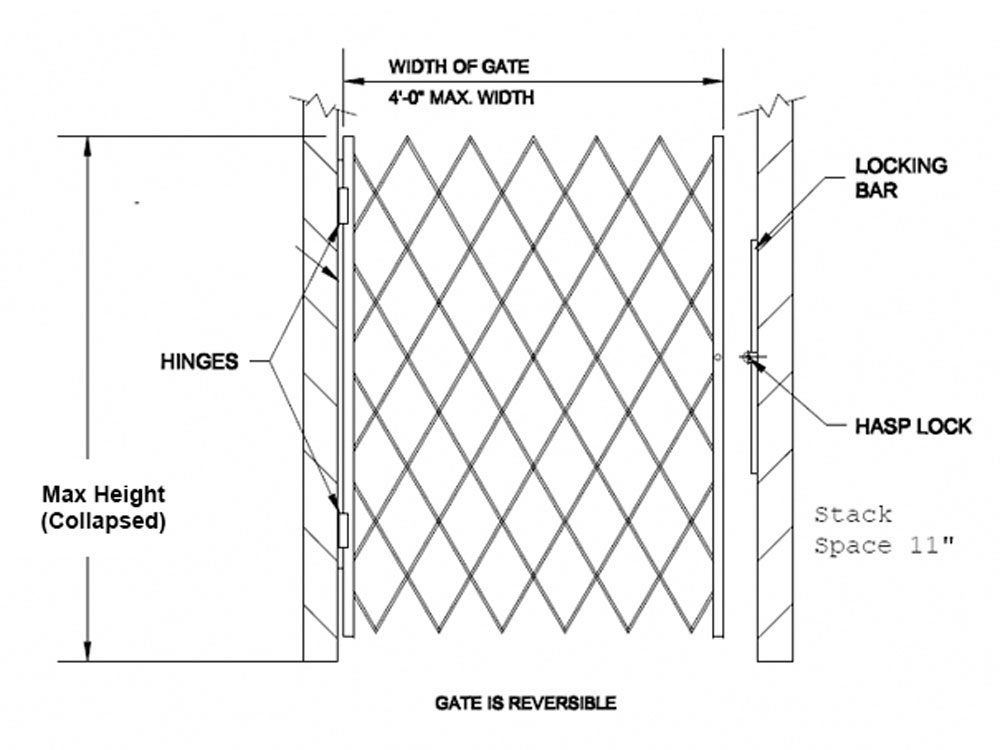

Maximum width is 48″ with door gates available in heights from 31″ to 83″.
Please Note: Door Gates lose height expanding.
| Part Number | Max. Height | Max. Width | Weight (lbs.) |
|---|---|---|---|
| BG-D31 | 31" | 48" | 16 |
| BG-D33 | 33" | 48" | 18 |
| BG-D37 | 37" | 48" | 20 |
| BG-D40 | 40" | 48" | 22 |
| BG-D43 | 43" | 48" | 23 |
| BG-D46 | 46" | 48" | 24 |
| BG-D49 | 49" | 48" | 25 |
| BG-D51 | 51" | 48" | 26 |
| BG-D59 | 59" | 48" | 28 |
| BG-D61 | 61" | 48" | 32 |
| BG-D63 | 63" | 48" | 34 |
| BG-D66 | 66" | 48" | 35 |
| BG-D71 | 71" | 48" | 45 |
| BG-D73 | 73" | 48" | 44 |
| BG-D76 | 76" | 48" | 47 |
| BG-D79 | 79" | 48" | 49 |
| BG-D81 | 81" | 48" | 50 |
| BG-D83 | 83" | 48" | 52 |
| Weight | Varies By Size |
| Dimensions | Varies By Size |
| Channel | 3/8″ x 3/4″, 14 Gauge Galvanized |
| Frame | 1-1/2″ x 1-1/2″, 12 Gauge Angle Iron, Zinc Plated |
| Hasp | 3/16″ Hasp Welded to Frame |
| Locking Bar – Wall Mount | 12 Gauge & 3/16″ Angle Iron, Zinc Plated |
| Rivets | 3/16″ x 1/2″ Steel, Zinc Plated |
| Hinge Bar | 1-1/2″ x 1-1/2″, 12 Gauge Angle Iron, Zinc Plated |
Heavy Duty Folding Door Gates
These rugged door gates are ideal for:
- Securing Hall Ways
- Securing High Traffic Entrances

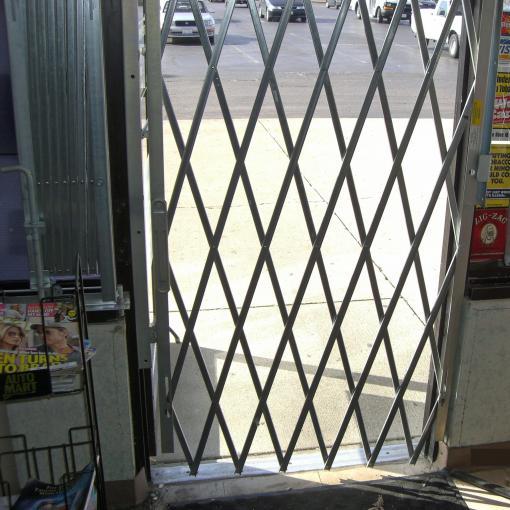

- Retail Entrance Security Gates
- Apartment Entrance Ways and more
Our heavy duty man gates will secure entranceways up to 4 feet in any type of business or industry up.
Or door gate pivots on hinges, so they open in or out, just like a door, but also provide the enhanced air circulation and visibility of a standard steel folding gate.
Folding Door Gate installation is versatile and can be mounted on the left or right side of the doorway.’
Our folding gates install in less than 30 minutes!
SPECIFICATIONS
- Fits doorways up to 4′ wide
- Galvanized Finish
- Locking Bar with padlock hasp (padlock sold separately)
- Standard: Locks on right; Optional: Lock on Left
- Install in Door Jamb or Face-mount
